AX Cleaner concept for ACC cleaning

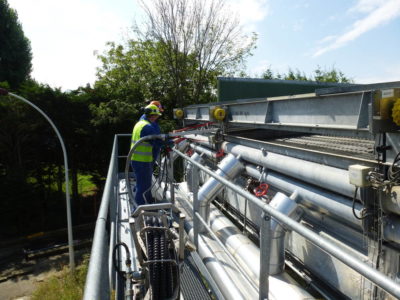

Air Cooled Heat Exchanger’s performances are falling down when their fins are fouled. How to clean them easily? That’s the question answered by our AX CLEANER®. Patented after 3 years of Research and Development, it is the most effective and most versatile existing cleaning solution.

CLEANING HEAD : 100% made of stainless steel, the cleaning head is sliding along rails in two directions, to cover the whole surface of the Heat Exchanger. The 16 conical flat shape nozzles fit any fin tube technology (aluminum flat tube, multi row…).

HOSE PUSHER : Installed on heat exchanger deck, this device has two functions: in pushing and pulling the hose, the pusher is driving the vertical motion of the cleaning head. Its hydraulic motor is using the same high pressure water as the cleaning head, so no electricity is required on the deck. The hose pusher also comes with a spooling device, which stores the high pressure hose and makes the cleaning operation easier.

HIGH PRESSURE PUMP UNIT : The pump supplies high pressure water to the cleaning head and the hydraulic motor of the hose pusher. Thanks to the frequency converter which controls the 22 kW electrical engine, the flow rate can be adjusted from 0 to 120 liter per minute, and the pressure from 0 to 130 bar. The pump is installed on the floor, bellow the heat exchanger, and is driven from heat exchanger deck by a radio remote control.
